A chemical tank, a waste liquor tank, a mixing tank, a desulphurization equipment, a pulp bleaching tower, waste liquor processing Installation A hood, a duct, pipe.

(1) Poly cent #40 and #50FRP are the fiber-reinforced-prastics products obtained by carrying out lamination molding of poly cent #40, #50 (Vinyl ester resin), and a glass fibre with the outstanding chemical resistance.
(2) Fully in consideration of various operating conditions, such as a use medical fluid, a working pressure range, and service temperature, I carry out a structural design and production.
(3) We do design application also of the assembly type tank in the site.
(4) We act also as an on-site fitter, such as a nozzle, as well as a design and production of a product.

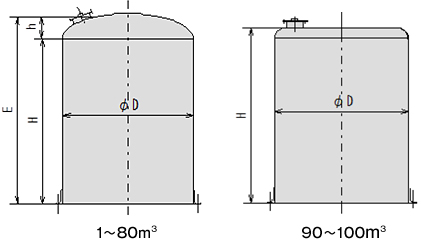

Volume	Inner diameter	The height of a body	A total height	PDF
V(m3)	D (mm)	H (mm)	E (mm)	-
1	1000	1300	1500	PDF CBSTE1
2	1300	1550	1810	PDF CBSTE2
3	1400	2000	2280	PDF CBSTE3
4	1600	2000	2320	PDF CBSTE4
5	1800	2000	2360	PDF CBSTE5
6	1800	2400	2760	PDF CBSTE6
7	2000	2300	2700	PDF CBSTE7
8	2000	2600	3000	PDF CBSTE8
9	2200	2400	2840	PDF CBSTE9
10	2200	2700	3140	PDF CBSTE10
15	2400	3400	3880	PDF CBSTE15
20	2800	3300	3860	PDF CBSTE20
30	3000	4300	4900	PDF CBSTE30
40	3200	5000	5640	PDF CBSTE40
50	3400	5600	6280	PDF CBSTE50
60	3400	6700	7380	PDF CBSTE60
70	3400	7800	8480	PDF CBSTE70
80	3400	8900	9580	PDF CBSTE80
90	3400	10000	-	PDF CBSTE90
100	3400	11100	-	PDF CBSTE100
